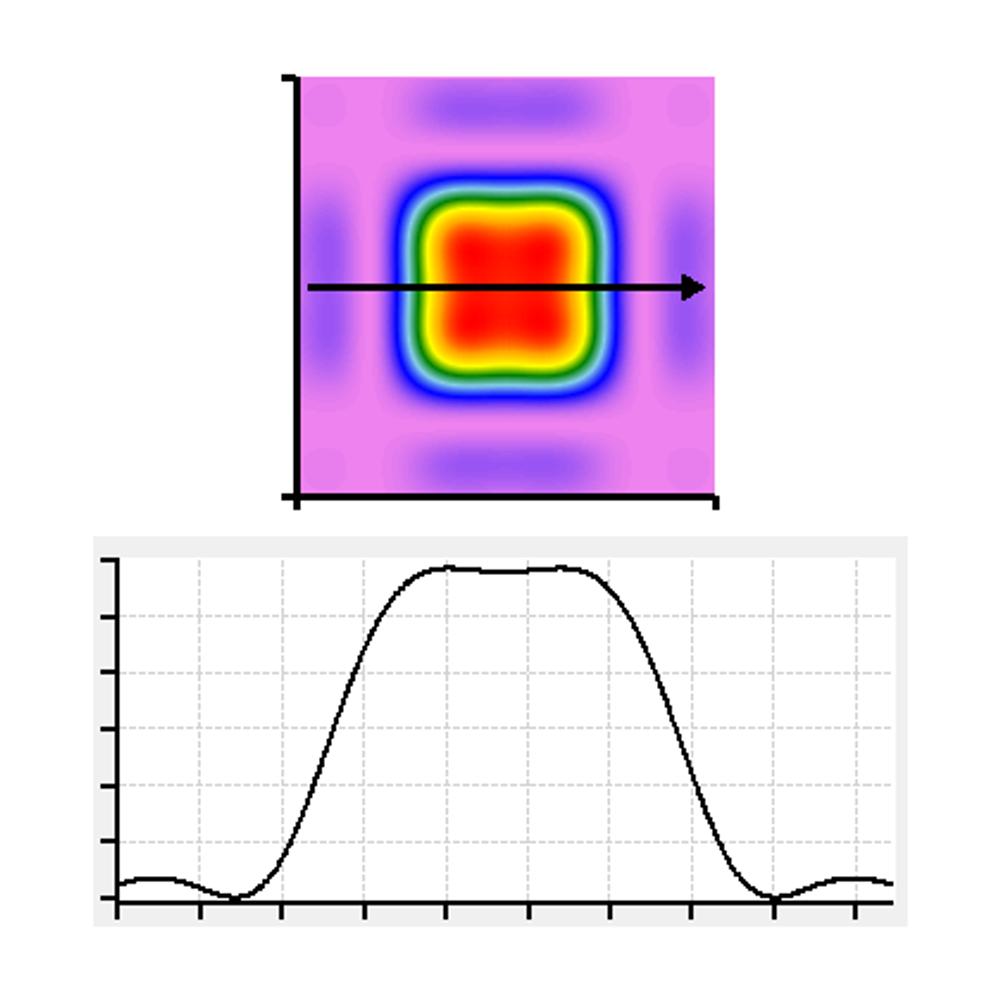

技术规格
| 平顶光束宽度 | 约 2 * λ * f / d, ， f = 焦距, d = 光束直径 @1/e2 |
|---|---|
| 效率 | up 至 90% |
| 均匀性 | 约 ±2.5%（相对于平顶区域平均光强） |
| 最强旁瓣 | 约为线形平顶区域的 1/16.5（低于入射能量的 1.5%） |
| 焦深 (DOF) | ~60% 的瑞利长度 |
| 材料 | 熔融石英 |
|---|---|
| 透射 | >99% |
| 损伤阈值 @ 10 ns | 10 J/cm² @ 1064 nm 5 J/cm² @ 532 nm 3 J/cm² @ 355 nm |
| 尺寸 | ⌀25.4 x 3 mm |
规格选型参考
66 项规格
| 型号 | 参数组合 |
|---|---|
| FBS2-1030-1.0 | 1.0 mm · 1030 nm |
| FBS2-1030-1.5 | 1.5 mm · 1030 nm |
| FBS2-1030-2.0 | 2.0 mm · 1030 nm |
| FBS2-1030-2.5 | 2.5 mm · 1030 nm |
| FBS2-1030-3.0 | 3.0 mm · 1030 nm |
| FBS2-1030-3.5 | 3.5 mm · 1030 nm |
| FBS2-1030-4.0 | 4.0 mm · 1030 nm |
| FBS2-1030-4.5 | 4.5 mm · 1030 nm |
| FBS2-1030-5.0 | 5.0 mm · 1030 nm |
| FBS2-1030-5.5 | 5.5 mm · 1030 nm |
| FBS2-1030-6.0 | 6.0 mm · 1030 nm |
| FBS2-1064-1.0 | 1.0 mm · 1064 nm |
| FBS2-1064-1.5 | 1.5 mm · 1064 nm |
| FBS2-1064-2.0 | 2.0 mm · 1064 nm |
| FBS2-1064-2.5 | 2.5 mm · 1064 nm |
| FBS2-1064-3.0 | 3.0 mm · 1064 nm |
| FBS2-1064-3.5 | 3.5 mm · 1064 nm |
| FBS2-1064-4.0 | 4.0 mm · 1064 nm |
| FBS2-1064-4.5 | 4.5 mm · 1064 nm |
| FBS2-1064-5.0 | 5.0 mm · 1064 nm |
| FBS2-1064-5.5 | 5.5 mm · 1064 nm |
| FBS2-1064-6.0 | 6.0 mm · 1064 nm |
| FBS2-343-1.0 | 1.0 mm · 343 nm |
| FBS2-343-1.5 | 1.5 mm · 343 nm |
| FBS2-343-2.0 | 2.0 mm · 343 nm |
| FBS2-343-2.5 | 2.5 mm · 343 nm |
| FBS2-343-3.0 | 3.0 mm · 343 nm |
| FBS2-343-3.5 | 3.5 mm · 343 nm |
| FBS2-343-4.0 | 4.0 mm · 343 nm |
| FBS2-343-4.5 | 4.5 mm · 343 nm |
| FBS2-343-5.0 | 5.0 mm · 343 nm |
| FBS2-343-5.5 | 5.5 mm · 343 nm |
| FBS2-343-6.0 | 6.0 mm · 343 nm |
| FBS2-355-1.0 | 1.0 mm · 355 nm |
| FBS2-355-1.5 | 1.5 mm · 355 nm |
| FBS2-355-2.0 | 2.0 mm · 355 nm |
| FBS2-355-2.5 | 2.5 mm · 355 nm |
| FBS2-355-3.0 | 3.0 mm · 355 nm |
| FBS2-355-3.5 | 3.5 mm · 355 nm |
| FBS2-355-4.0 | 4.0 mm · 355 nm |
| FBS2-355-4.5 | 4.5 mm · 355 nm |
| FBS2-355-5.0 | 5.0 mm · 355 nm |
| FBS2-355-5.5 | 5.5 mm · 355 nm |
| FBS2-355-6.0 | 6.0 mm · 355 nm |
| FBS2-515-1.0 | 1.0 mm · 515 nm |
| FBS2-515-1.5 | 1.5 mm · 515 nm |
| FBS2-515-2.0 | 2.0 mm · 515 nm |
| FBS2-515-2.5 | 2.5 mm · 515 nm |
| FBS2-515-3.0 | 3.0 mm · 515 nm |
| FBS2-515-3.5 | 3.5 mm · 515 nm |
| FBS2-515-4.0 | 4.0 mm · 515 nm |
| FBS2-515-4.5 | 4.5 mm · 515 nm |
| FBS2-515-5.0 | 5.0 mm · 515 nm |
| FBS2-515-5.5 | 5.5 mm · 515 nm |
| FBS2-515-6.0 | 6.0 mm · 515 nm |
| FBS2-532-1.0 | 1.0 mm · 532 nm |
| FBS2-532-1.5 | 1.5 mm · 532 nm |
| FBS2-532-2.0 | 2.0 mm · 532 nm |
| FBS2-532-2.5 | 2.5 mm · 532 nm |
| FBS2-532-3.0 | 3.0 mm · 532 nm |
| FBS2-532-3.5 | 3.5 mm · 532 nm |
| FBS2-532-4.0 | 4.0 mm · 532 nm |
| FBS2-532-4.5 | 4.5 mm · 532 nm |
| FBS2-532-5.0 | 5.0 mm · 532 nm |
| FBS2-532-5.5 | 5.5 mm · 532 nm |
| FBS2-532-6.0 | 6.0 mm · 532 nm |
